Description

Wi-Fi remote monitoring kit for Iconica hybrid inverters provides short- and long-distance remote monitoring with email alerts and online portal access.

• Short-distance mode: creates a Wi-Fi network the user can access from a nearby location (approx. 10-50 m radius depending on obstructions) on a mobile device.
• Long-distance mode: connects the kit to an existing broadband network to transmit inverter data to an online server for viewing via any internet browser.

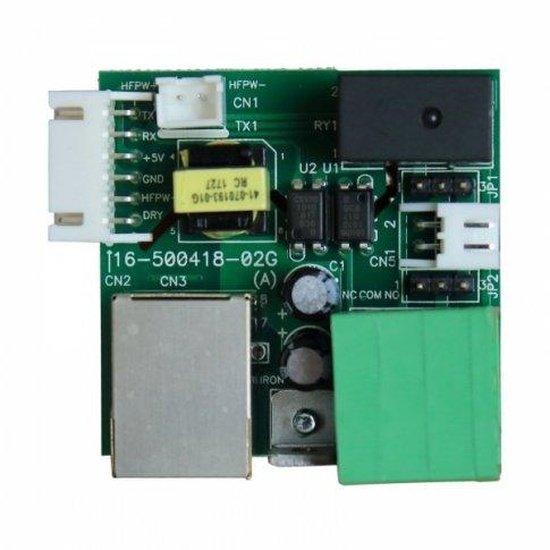

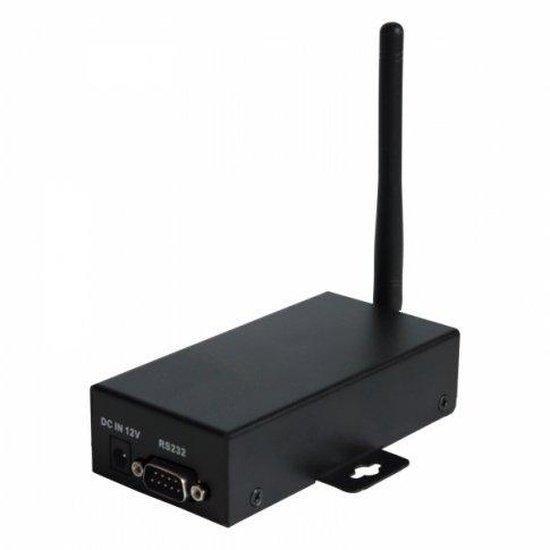

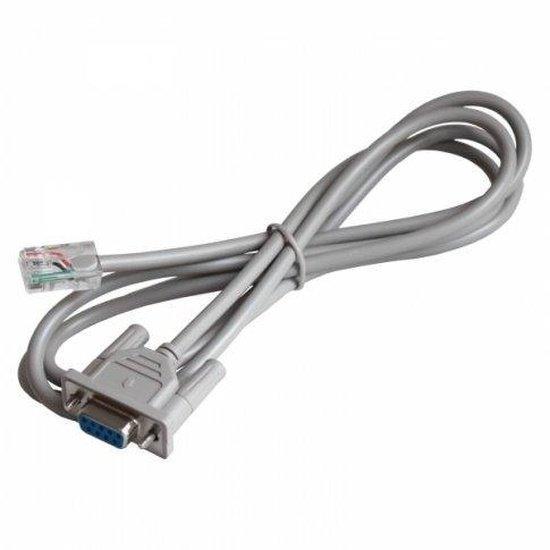

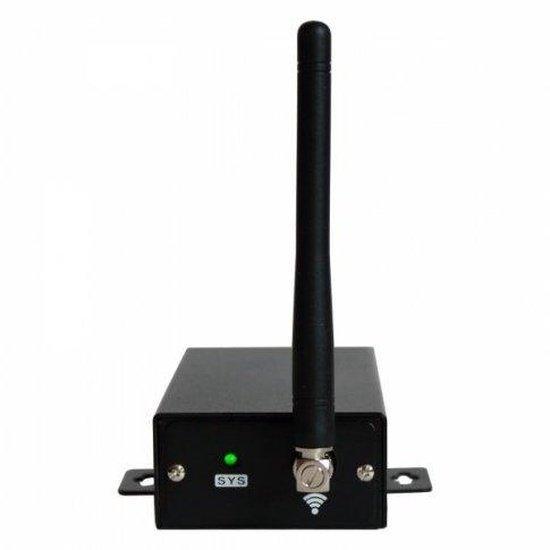

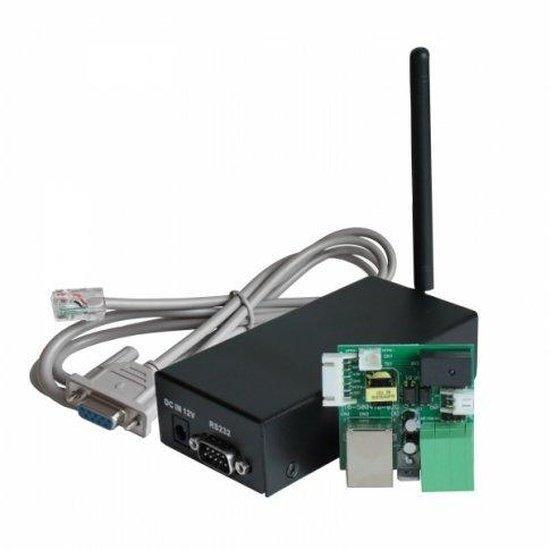

• Kit includes: Wi-Fi card and unit (with antenna) and DB9-to-RJ45 cable for connection to the Iconica inverter.
• Additionally required: broadband network (only for long-distance monitoring) and a mains-to-12 V DC power adapter for some inverter models.
• Online DataCenter portal: communicates with the Iconica inverter to transmit data. Live in-depth monitoring refreshed every 5 minutes includes: PV input power and voltage, battery voltage, charging current, grid voltage, grid output voltage/frequency, and battery capacity percentage.
• Remote monitoring features: detailed datalogs and indefinite alarm history storage; system status diagrams and infographics; regional monitoring to group and view multiple Iconica inverters; multiple user access with administrator account management; and email notifications for faults, warnings and status updates (one Wi-Fi kit required per inverter).
• Compatibility: designed for Iconica hybrid inverters. Iconica 4 kW and 5 kW KMS series can power the kit via the included RJ45 cable; other Iconica inverters require a mains-to-12 V DC adapter with a 5.5 x 2.5 mm DC jack.
• Specifications: rated voltage 12 V; DB9-to-RJ45 communication cable length 1.5 m (4.9 ft); Wi-Fi box dimensions 120 x 61 x 34 mm (4.72 x 2.40 x 1.34 in); mounting brackets 31 x 12 mm (1.22 x 0.47 in) each with 8 mm diameter hole; antenna length 115 mm (4.53 in); Wi-Fi box weight (including card and antenna) 335 g (0.74 lb).
• Warranty & docs: product covered by a 1 year warranty and user manual available to download for setup and further information.

Please ensure one Wi-Fi kit is fitted per inverter and consult the user manual for installation and compatibility details.
