Description

Parallel kit for linking identical Iconica 48 V KMS or ZT series hybrid pure sine wave inverters in parallel.

• Compatible models: Iconica 48 V KMS series hybrid inverters (4,000 W and 5,000 W) and Iconica 48 V ZT series inverters — compatible with identical units only.

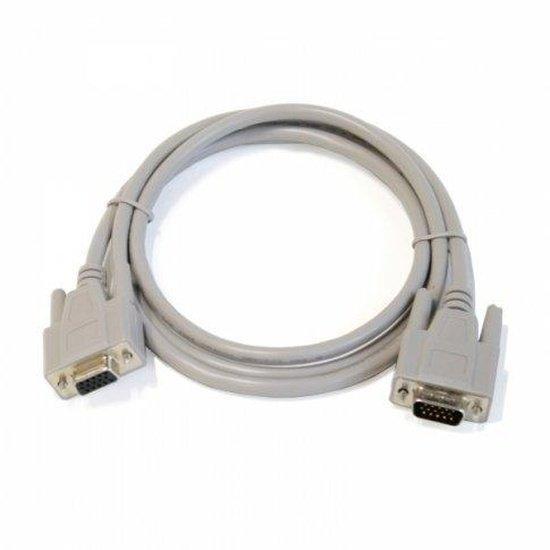

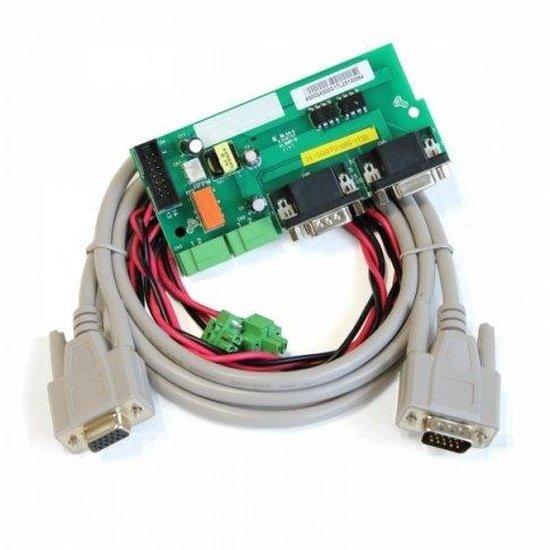

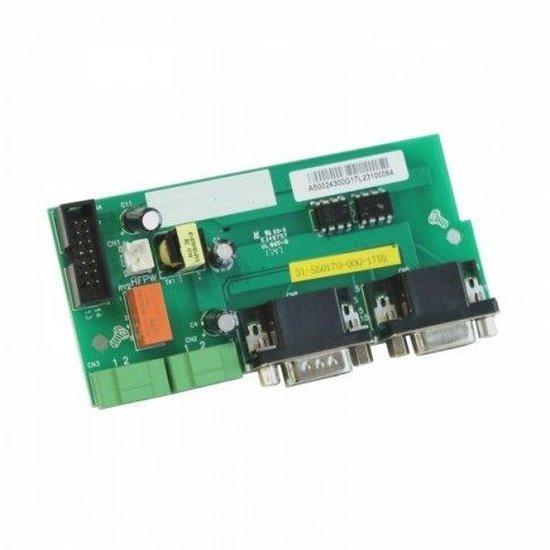

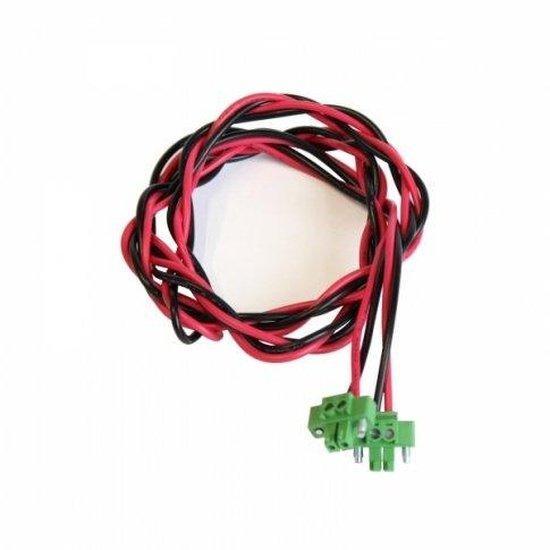

• Kit includes: 1 x circuit board, 1 x communication cable and 1 x current sharing cable.
• A maximum of nine Iconica KMS or ZT series inverters can be connected together in parallel to increase total system power handling.
• Paralleled inverters can be configured for single‑phase or three‑phase operation for heavier industrial or three‑phase loads.
• One parallel connection kit is required per Iconica inverter. For example, connecting two inverters requires two kits.
• Connection is straightforward; full instructions are supplied and the user manual for the parallel connection kit for Iconica 48 V KMS or ZT series hybrid inverters is available to download.
• Not compatible with other Iconica models — only for identical 48 V KMS or ZT series hybrid inverters (4,000 W–5,000 W; approx. 5.4–6.7 hp).

Please ensure all connected inverters are identical model and firmware version before paralleling; follow the supplied manual for safe installation and commissioning.

Specifications

• Product Assurance: Quality Standards
