Description
Technical Parameters
1. Model: LDTR-WG0267
2. Potentiometer: Resistance B100K; opening 8mm
3. Input voltage: DC10-60V
4. Output voltage: 0-100% of input voltage
5. Control power: 12V*10A=120W, 24V*10A=240W,...
6. Rated current: 10A
7. Maximum current: 20A
8. Speed range: 5%-100%
9. Size: 88mm*59mm*35mm
10. PWM frequency: 25kHz

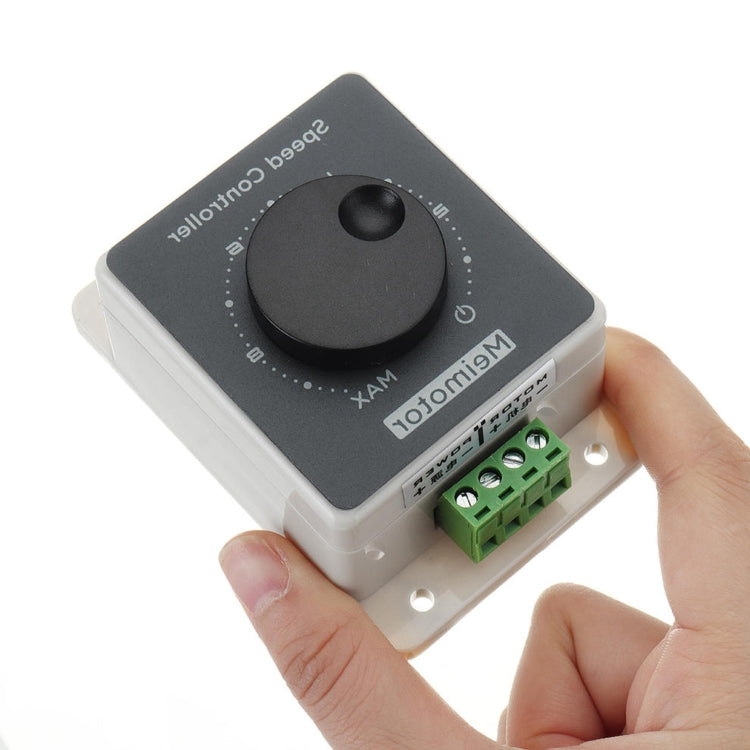

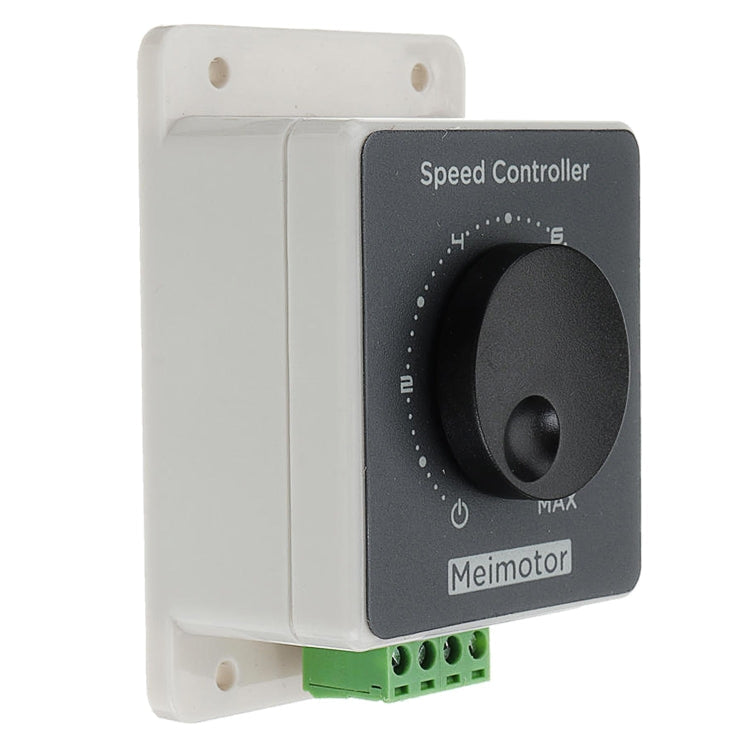

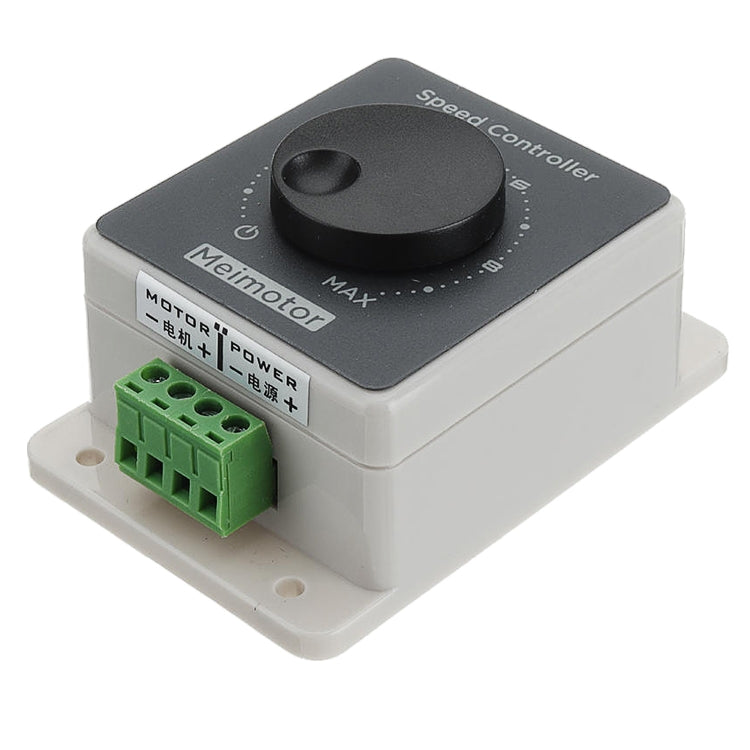

11. Package included: 1 x DC 12V 24V 36V 48V PWM DC Motor Speed Controller
Precautions and instructions for use
1. DC motor speed controller input is DC, not directly connected to AC, otherwise it will burn out
2. The positive and negative DC power supply can not be reversed, otherwise the governor will be damaged.

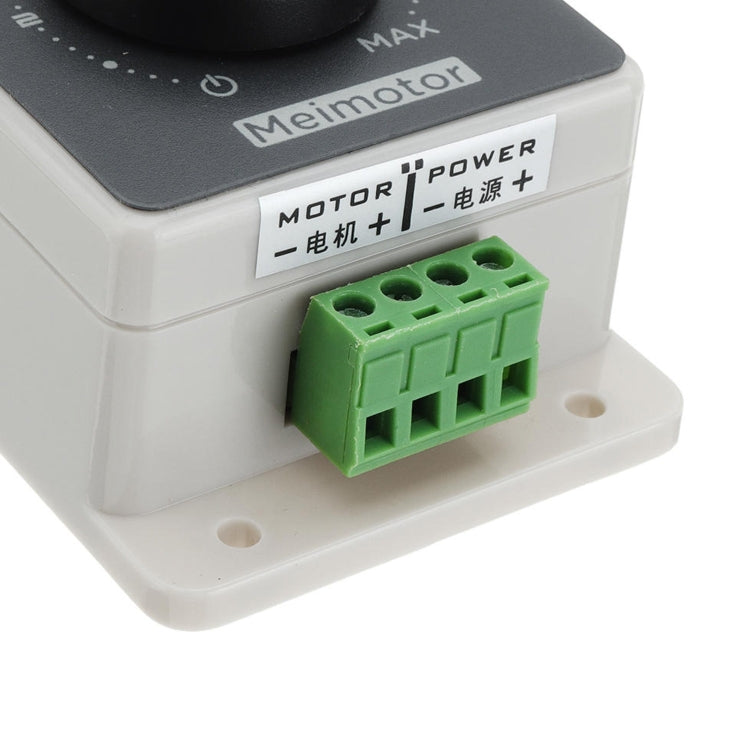

3. The motor can be divided into positive and negative. When the direction of movement is inconsistent with the expectation,
4. the direction can be changed by adjusting the line sequence.

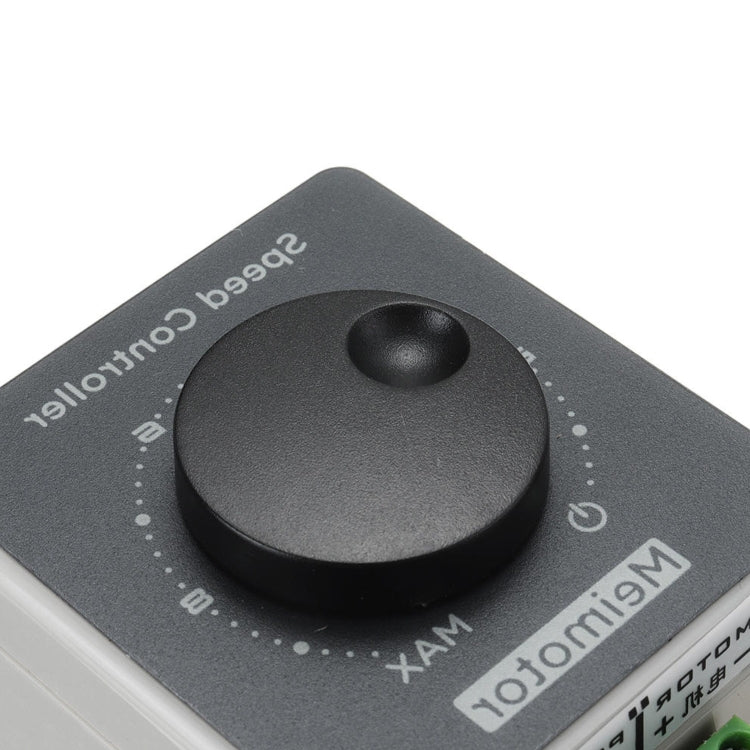

5. The potentiometer knob can change the duty cycle of the speed control output, thus changing the motor speed.
Specification:
| Package Weight |
| One Package Weight |
0.11kgs / 0.23lb |
| One Package Size |
10cm * 7cm * 4cm / 3.94inch * 2.76inch * 1.57inch |
| Carton Weight |
15.00kgs / 33.07lb |
| Carton Size |
60cm * 35cm * 40cm / 23.62inch * 13.78inch * 15.75inch |
| Loading Container |
20GP: 317 cartons * 300 pcs = 95100 pcs
40HQ: 736 cartons * 300 pcs = 220800 pcs
|
|
