Description
Features
1. Adopt a high-efficiency, green and low-energy switching power supply solution, with a wide power supply range (AC85V-250V), no static heat, and good stability.
2. Adopt advanced superheterodyne receiving technology and cooperate with intelligent MCU, which has many advantages such as good stability, strong anti-interference ability, and many functions.

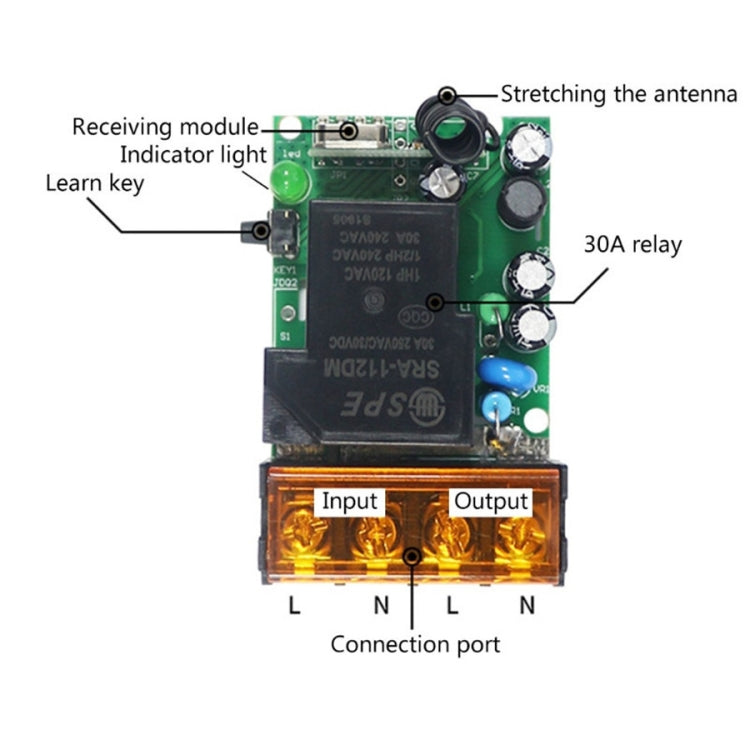

3. Adopt domestic high-quality SPE high-power relays to enhance the load capacity and last for a long time.
4. This product is suitable for replacing the traditional manual switch, realizing the function of remote control on and off, remote control of water pump on and off, remote control of various lamps, remote control street lights, remote control fans, remote control starter generator, remote control of various household appliances, Remote control of various types of power strips and other products.
Parameter
1. Working voltage: AC85-250V
2. Static current: less than 10MA
3. Demodulation: ASK / superheterodyne
4. Frequency: 433MHZ
5. Sensitivity: -112dBm
6. Receiving distance: more than 50 meters [further in open space] with a high-power remote control for a longer distance
7. Pure resistive load: 3000W / light bulb
8. Inductive load: 1500W / motor/water pump
9. Working temperature: -10-50 degrees Celsius
10. Product size: 105x51x30mm (with shell)
Specification:
| Package Weight |
| One Package Weight |
0.11kgs / 0.24lb |
| One Package Size |
10cm * 6cm * 3cm / 3.94inch * 2.36inch * 1.18inch |
| Carton Weight |
2.00kgs / 4.41lb |
| Carton Size |
20cm * 15cm * 10cm / 7.87inch * 5.91inch * 3.94inch |
| Loading Container |
20GP: 8888 cartons * 20 pcs = 177760 pcs
40HQ: 20634 cartons * 20 pcs = 412680 pcs
|
|
