Description
1. Operating voltage: 220V-240VAC
2. Power load: 1200W
3. Power frequency: 50/60HZ
4. Time delay: 10 seconds~30 minutes
5. Frequency system: 5.8Hz+/-75MHz CW radar
6. Transmission power: 0.2mW
7. Detection angle: 360 degrees
8 Installation method: indoor, ceiling mounting
9. Light source control: 10-2000LUX
10. Detection distance: 2-10m

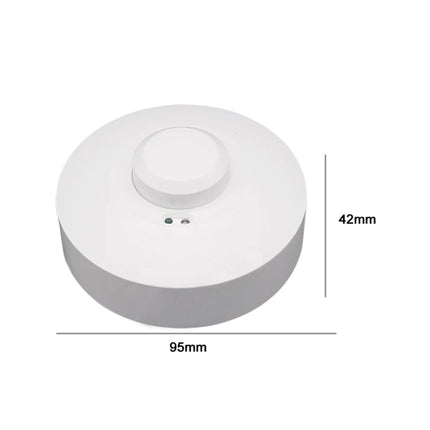

11. Size: 95x95x42mm
12. Is a motion detector with adjustable sensitivity and light detection time setting
13. Based on the Doppler principle and radar technology with antenna and high performance microchip
14. Can penetrate objects, so concealed installation is an option
15. Not affected by temperature, such as infrared induction will be at a temperature of about 37 degrees will be time-sensitive, such as summer, indoor, outdoor, or other operating environment may be higher than this temperature
16. Infrared induction, need to pass through the lens, induction range angle is small, the blind area is large, radar induction almost no blind area
17. Infrared induction will be affected by air dust, dust will affect the induction distance
18. Load power: 600W (resistive load, incandescent lamps and other resistive appliances) / 300W
19. Interface: 3 pole pluggable port (N, L, L), 1.5mm2 cable

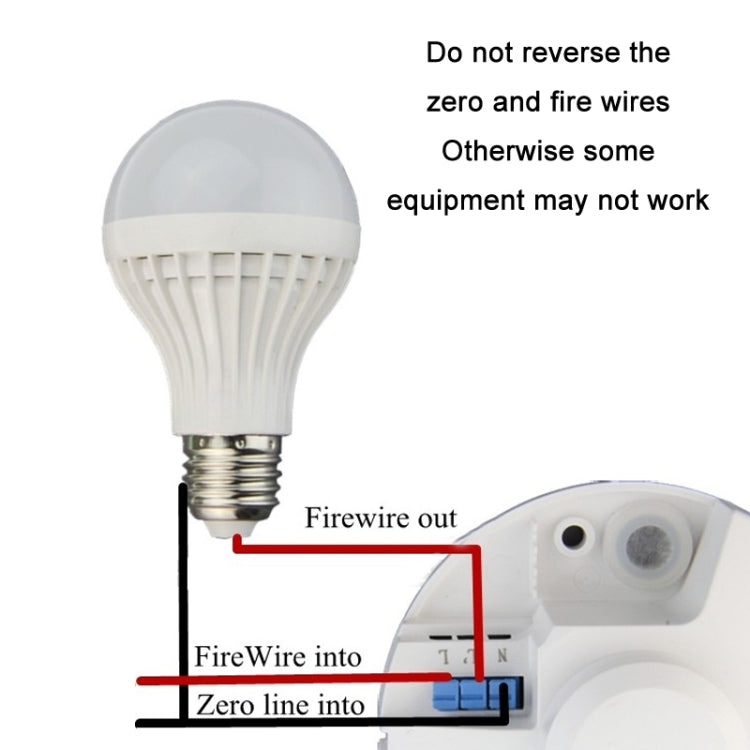

20. Do not reverse the zero and fire wires, otherwise some equipment may not work
Specification:
| Package Weight |
| One Package Weight |
0.09kgs / 0.21lb |
| One Package Size |
12cm * 12cm * 6cm / 4.72inch * 4.72inch * 2.36inch |
| Carton Weight |
30.00kgs / 66.14lb |
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch |
| Loading Container |
20GP: 177 cartons * 318 pcs = 56286 pcs
40HQ: 412 cartons * 318 pcs = 131016 pcs
|
|
