Description

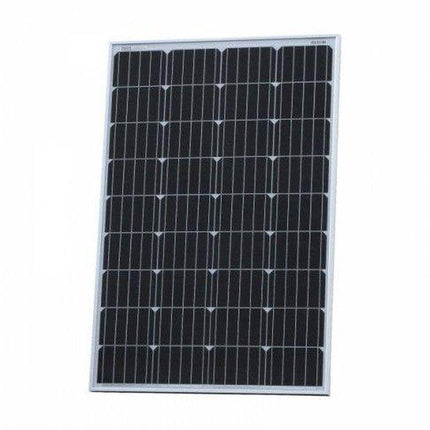

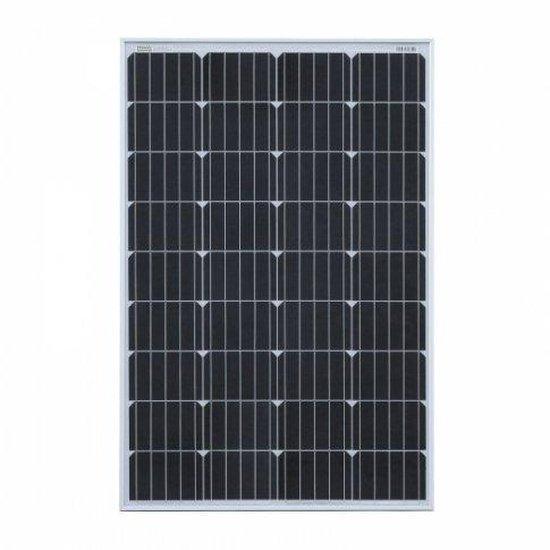

120W 12 V monocrystalline solar panel with 2 x 5 m MC4 leads — waterproof, high-efficiency and suitable for boats, camper vans, sheds and remote installations.

• To charge a 12 V battery or battery bank, please note this panel requires a solar charge controller / regulator.
• Peak power: 120W. Maximum power voltage (Vmp): 20.2 V. Maximum power current (Imp): 5.94 A.
• Open-circuit voltage (Voc): 23.9 V. Short-circuit current (Isc): 6.31 A. Power allowance range: +/- 3%.

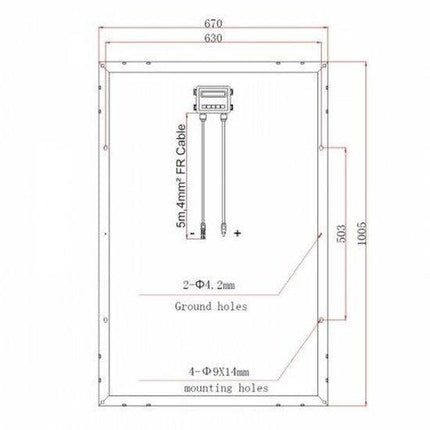

• Dimensions: 100.5 x 67 x 3.5 cm (39.6 x 26.4 x 1.4 in). Weight: 8.3 kg (18.3 lb).
• 4 mounting holes, 9 x 14 mm (0.35 x 0.55 in) for secure fixing.

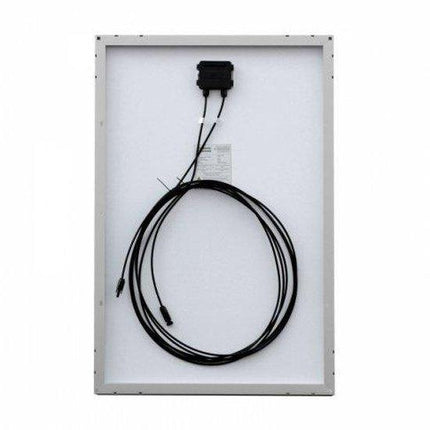

• Includes 2 x 5 m MC4 leads of high-quality single-core solar cable; MC4 connectors can be cut off for direct wiring to a charge controller or 4 mm extension cable.
• High-efficiency monocrystalline cells with 5-busbar design for improved performance in limited space and warmer climates.
• Waterproof, sealed aluminium frame for permanent outdoor use on boats, motorhomes, caravans, farms and remote telecom or monitoring sites.

Installation: This solar panel is not supplied with an installation manual; professional or qualified installation is recommended. Compatible with standard solar charge controllers and 4 mm extension cable.

Specifications

• Product Assurance: Quality Standards

Pros and cons

• Sustainably produced
• Ideal for everyday use
