Description
Features:
1. Support HDMI and DVI input
2. Support four HDMI outputs
3. The output supports RGB 4:4:4
4. The input resolution supports 1080P/1080i/720P/576P/576i/480P
5. The output resolution supports 1080P/1080i/720P/576P/576i/480P
6. Support RS232 control

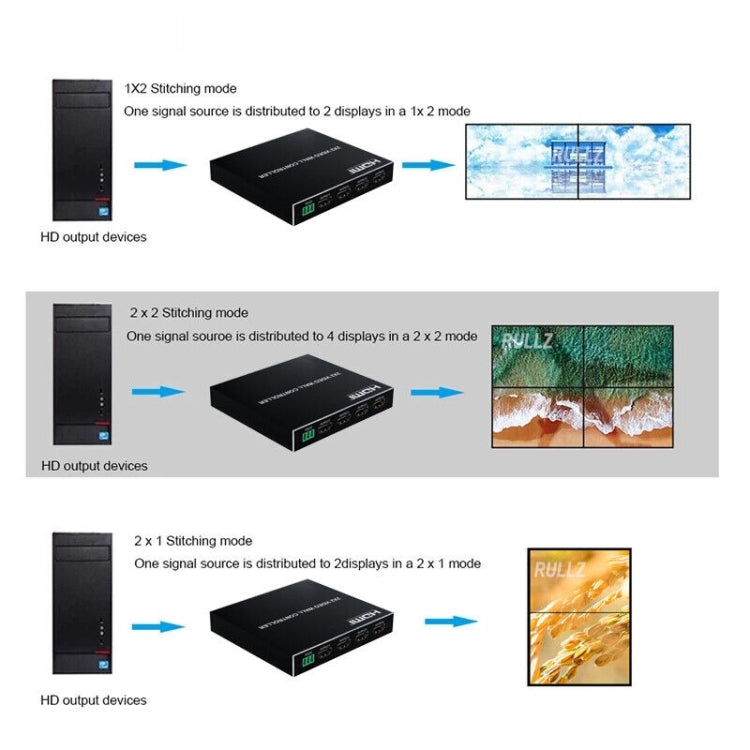

7. Support 2x2/1x2/2x1 splicing, easy to operate, plug and play
8. Support 2x2 automatic stitching function

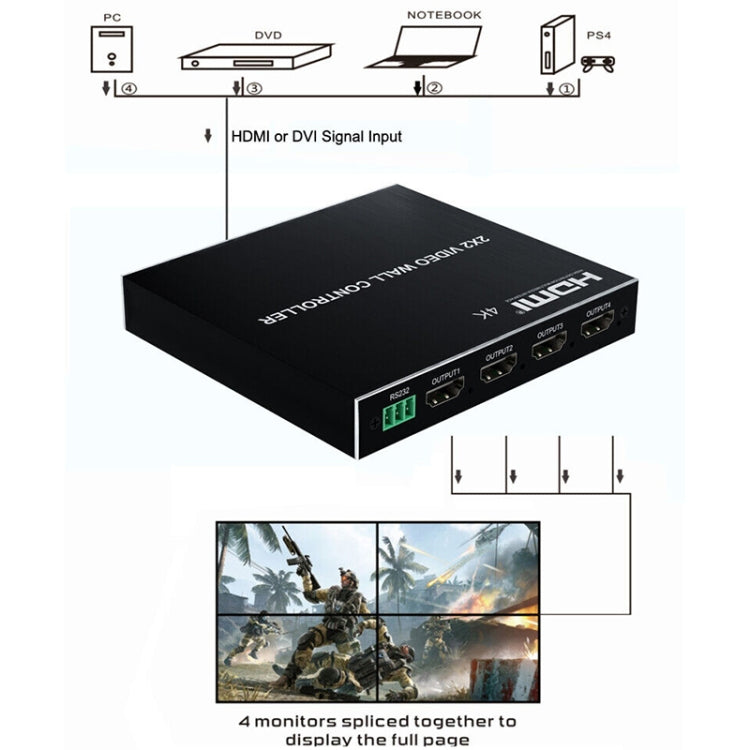

9. The main function is to divide a complete HDMI/DVI high-definition image signal into 4 blocks and then distribute them to 4 video display units (such as rear projection units, LCD TVs, etc.), and complete 4 hdmi high-definition video display units to form one Dynamic image large screen

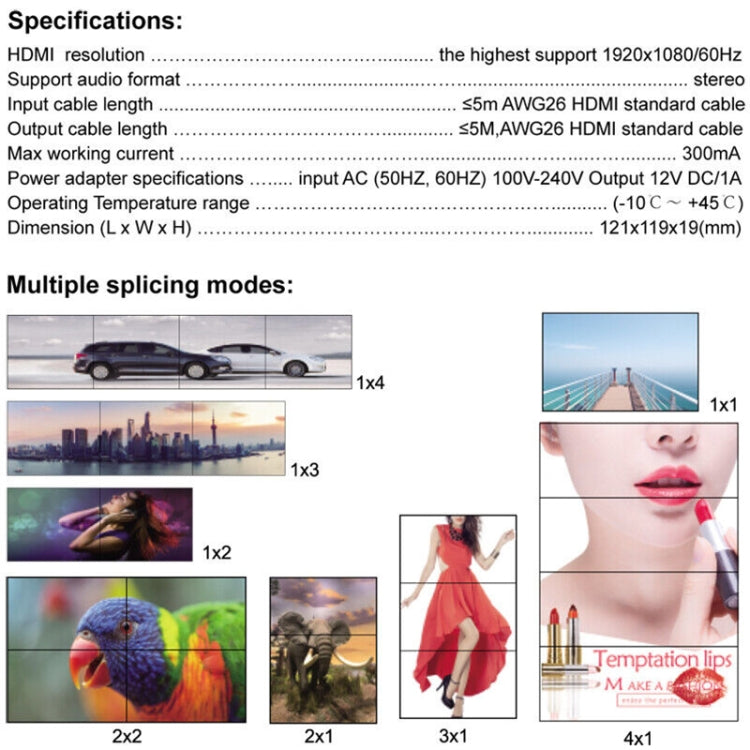

Specifications:
1. HDMI resolution: support 1920x1080/60Hz
2. Audio format: stereo
3. Input cable length: greater than or equal to 5 meters AWG26 HDMI standard cable
4. Output cable length: greater than or equal to 5 meters AWG26 HDMI standard cable
5. Working current: 300mA (max)
6. Operating temperature range: 0-45 degrees Celsius
7. Size: 121x119x19mm
8. Net weight: 228g
Packing list:
2x2 splicer x 1
Remote control x 1
RS232 serial line x 1
User manual x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.53kgs / 1.16lb
|
| One Package Size |
15cm * 11cm * 3cm / 5.91inch * 4.33inch * 1.18inch
|
| Carton Weight |
11.02kgs / 24.29lb
|
| Carton Size |
32cm * 24cm * 17cm / 12.6inch * 9.45inch * 6.69inch
|
| Loading Container |
20GP: 2042 cartons * 20 pcs = 40840 pcs
40HQ: 4741 cartons * 20 pcs = 94820 pcs
|
|
